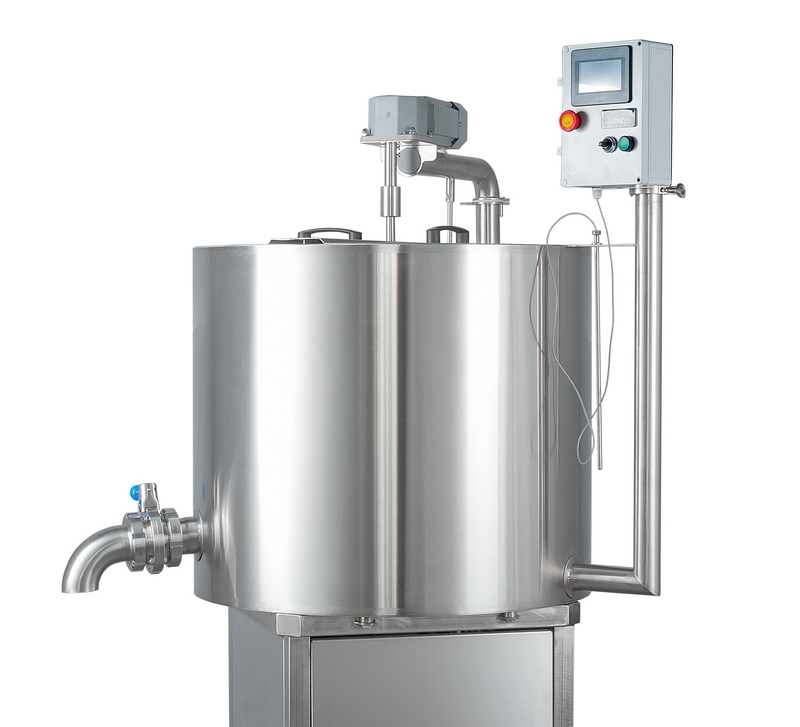

Cheese making kit
with cheese vat MASTER-70
Designed for the production of cheese and other dairy products.
The mini-cheese factory CASARO allows you to perform the following operations: pasteurization of milk, cooling, the formation of a raw cheese grain, kneading cheese grain to a plasticization temperature, long-term holding of temperature
Cheese making kit includes:
MASTER-70 specification
  • Load capacity 70 L, bowl dimensions: D 495 x H 430 mm (overall 80 L)
  • Jacket volume - 25 L
  • Flat bottom with border bending radius 15 mm
  • 13.5 kW / 380V (adjustable power)
  • Electrical heating (heating electrical capacity 6.0 or 4.5 kW)
  • Adjustable power of heating coils with button
  • AISI 304 stainless steel (thickness S = 2mm)
  • Equipped with 1 temperature sensor for product and 1 temperature sensor for heating/cooling water
  • Heating with forced water circulation with circulating pump
  • Running water cooling (controlled with electrical valves)
  • EVCO controller (Italy)
  • Maximal heating temperature of heating jacket: +95 C
  • Ergonomic dual segmented lid
  • Agitator drive 220V / 40W with adjustable frequency (from 0 to 50 rpm)
  • Drain bend D 51 mm (valve included)
  • Adjustable legs
Three operating modes

Operator sets the following parameters:
- T of heated product
- T of heating medium
- T of cooled product
- holding time

The equipment will carry all processing stages automatically

Operator sets only temperature of product and control processing stages manually

Operator sets only temperature of heating medium and control processing stages manually
False bottom
The bottom is intended for placement of moulds with cheese in a cheese vat to brine at high temperature
Pre pressing device
Designed to pre press a raw grain.

This device is designed to shift cheese grains when draining whey. It allows you to move the cheese mass from the drain channel of the cheese factory, avoiding the loss of grain.
Cheese knife (lyre) 450 x 170 mm
  • overall dimensions - 850/170/25 mm
  • dimensions of cutting element - 450 x 170 mm
  • grip length - 300 mm
  • string diameter - 0,5 mm
  • arrangement of threads vertical or horizontal distance between threads - 20 mm
  • mass - 700 g.
Drainage table 600 x 1200 x 80 mm
  • working area dimensions 600 х 1200 х 80 mm
  • overall dimensions 700 х 1300 х 920 mm (from ground to working area 850 mm)
  • stainless steel AISI 304
  • wall thickness 2 mm
  • polished surfaces
  • drain bend D 38 mm
  • food grade hose – 50 cm
  • all-welded base from stainless steel tube 30x30x2
  • stainless steel rolls kit
  • clamp valve 38мм – optional
